Description
Description

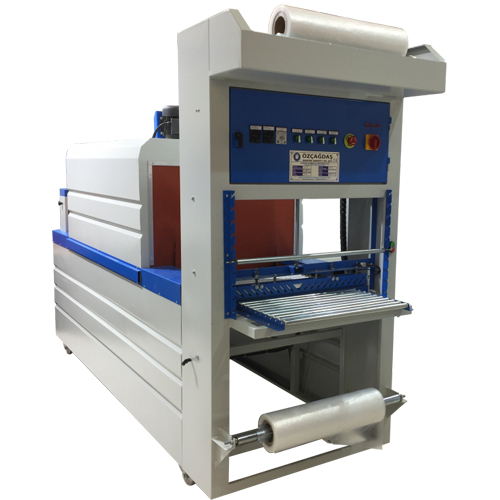

K1PE-S Series is designed to meet the demands of a wide spectrum of clients in food, beverage, pharmaceutical, chemical, cosmetic, paint, printing press, automotive and other industries. It is used for packaging the products made from various materials, such as plastic, glass, metal, wooden and cardboard. Products of all types with tray and without tray are packed easily and safely. Production capacity is subject to product size, type of product, shrink film material and shrink film thickness.
Application

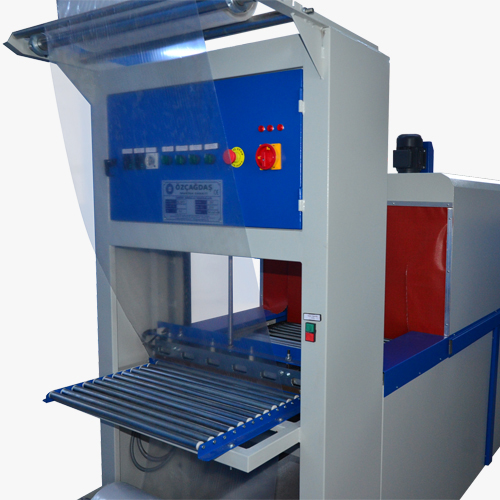

The operator manually inserts products into infeed roller conveyor and pushes by hand to sealing area. Press the sealer button to seal and cut the film. Through the new product pushes the previous product into the shrink tunnel. The polyethylene film tightly wraps product with temperature inside the tunnel and the film is cooled by the fan at the exit of the tunnel to take the form of the product. Besides provides a good image to the product, protects the products from abrasion, friction, scratch and dust during storage and transportation.
Features
- Monoblock chassis
- Seramic coated sealing bar
- The sealings are provided by P.I.D heat control system
- Easy changeable stainless bar resistance system
- Silicone curtains at tunnel entrances and exits
- Minimal heat loss with excellent thermal insulation

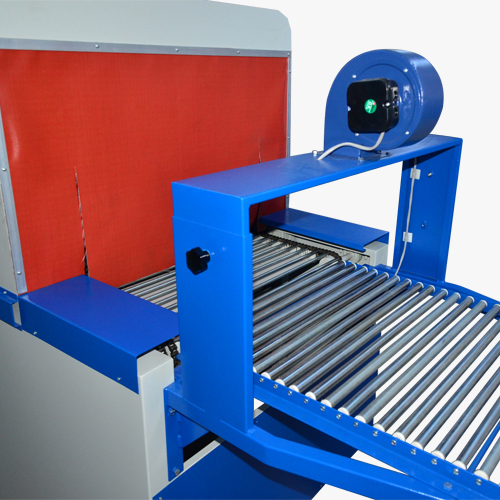

- Cooling fan at the tunnel exit
- Adjustable tunnel temperature
- Easy and fast film exchange
- Wheels with brakes for easy transport
- Easy installation and simple operation
- Emergency button
- High shrinking speed
- Production efficiency and package quality
- Longevity
- CE certified
- 2 years warranty except wearable parts
- 5 Years spare parts supplier
Optional
- Adjustable tunnel conveyor speed
- Holder to keep the package steady during sealing by soft vertical piston.
- Inside tunnel transport system (silicon coated shafts, wire mesh belt or teflon mesh belts)
- Ironing side-rollers at the exit of heat tunnel
Technical Features
| Model | K1PE-S 70/50 | K1PE-S 90/50 |
| Max product height | 380mm | 380mm |
| Sealing bar length | 700mm | 900mm |
| Power supply | 380V–3Faz 50–60Hz | 380V–3Faz 50–60Hz |
| Installed power (including tunnel) | 18 kW | 18 kW |
| Operating pressure | 6 bar | 6 bar |
| Air consumption amount | 65 nl/dk | 65 nl/dk |
| Production capacity | 240-360(pack/h) | 240-360(pack/h) |
| Film type | PE | PE |
| Film thickness | 20-100 micron | 20-100 micron |
| Reel width | 700mm | 900mm |
| Reel diameter | 300 Ø | 300 Ø |
| Tunnel dimensions | 700x1500x500mm | 900x1500x500mm |
| Machine dimensions (including tunnel) | 1100x3700x2100mm | 1300x3700x2100mm |
| Weight | 550 kg | 700 kg |
